- Code : BW_N Series
- Crystal Size (mm) : 20×22
- Angle of Regraction in Steel (degrees) : 38, 45, 60, 70, 80, 90
- Frequencies (MHz) : 2, 4
- Connectors : BNC
Angle Probes - Ultrasonic Transducer - Regular Size

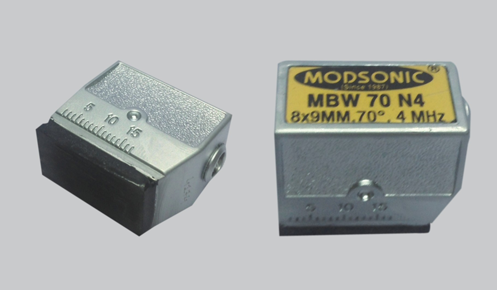

Angle Probes - Miniature Size
- Code: MBW_N Series
- Crystal Size (mm) : 8×9
- Angle of Refraction in Steel (degrees) : 38, 45, 60, 70, 80, 90
- Frequencies (MHz): 2, 4
- Connectors: Lemo 00 (Mini Lemo)
(Probes with Crystal size(mm) : 14×14 are also available
Frequently Asked Questions
What are Angle Probes used for in ultrasonic testing?
Angle Probes are used for weld inspection, crack detection, flaw detection, and non-destructive testing (NDT) applications where angled ultrasonic beam entry is required.
Which angle options are available in Modsonic Angle Probes?
Modsonic Angle Probes are available in 38°, 45°, 60°, 70°, 80°, and 90° beam angles for different inspection requirements.
What frequencies are available for Modsonic Angle Probes?
The probes are commonly available in 2 MHz and 4 MHz frequency options depending on the probe model and application.
What is the difference between regular and miniature angle probes?
Regular angle probes generally feature a 20 × 22 mm crystal size, while miniature angle probes use smaller crystal sizes for compact or difficult-to-access inspection areas.
Which connectors are used in Modsonic Angle Probes?
Regular probes commonly use BNC connectors, while miniature angle probes use Mini LEMO connectors for stable signal transmission.
Can Angle Probes be used for weld inspection?
Yes, Angle Probes are widely used for weld testing, pipeline inspection, structural inspections, and crack detection in industrial applications.
Are high-temperature angle probes available?
Yes, Modsonic also offers high-temperature angle probes designed for inspections on elevated-temperature surfaces.
