The frequency is defined as the total number of waves or signals that emerge in a certain interval of time and is calculated in Hertz (Hz). The frequency band is altered and adjusted based on frequency levels based on how to use ultrasonic transducers. Ultrasound is defined as a sound that is louder beyond the human hearing range and has a frequency band of more than 20 kHz. An ultrasonic transducer and ultrasonic sensor are devices that can create or perceive ultrasound.
What Is An Ultrasonic Transducer?
An Ultrasonic Transducer is a capacitance or piezoelectric transducer that can transfer electrical power to ultrasound energy and back. This ultrasound or ultrasonic wave has a frequency spectrum range of over 20 kHz, and it is employed at 200 kHz depending on how to use ultrasonic transducer.
Due to the obvious shorter wavelength of the ultrasound, these are utilised in non-destructive testing, measuring materials, and finding minor flaws. These are crucial in sensors that detect level and flow, calculate distance, and are used in medical, electrical, as well as other ultrasonic applications. It has different functions in a variety of fields regarding how to use ultrasonic transducer.
Where Is An Ultrasonic Transducer Used?
Ultrasonic transducers detect objects in close proximity using ultrasound waves over 20 kHz, similar to how bats use echolocation to avoid collision with barriers. Ultrasonic sensors are widely utilised in the automotive industry for ADAS (Advanced Driver-Assistant Systems) technologies, particularly parking assist, where 4–16 sensors are employed to identify impediments while parking a car. Ultrasonic sensors are utilised in robotics as well as other applications that require accurate detection, vicinity, or positioning detection in the industrial sector.
Ultrasonic Transducer Working Principle
Before dwelling on how to use ultrasonic transducer, let us learn about its working principle. The sensor can detect the time difference between the transmission and reception echo. The acquired round-trip duration can be utilised to calculate the distance between the sensor and the subject because the velocity of sound is a known variable.
This ultrasonic sensing approach uses a time-of-flight measurement based on sound propagation time. It’s worth noting that the speed of sound through air changes with temperature. The speed of sound in dry air at 20°C (68°F) is 343 m/s or 2.91 seconds per kilometre.
Ultrasonic Distance Equation:
D = ½ * T * C
Where,
‘D’ – distance.
‘T’ – time difference between the transmission and reception of ultrasonic waves
‘C’ – sonic velocity
How Does An Ultrasonic Transducer Work?
When the electrical signals are transmitted to the target by an ultrasonic transducer, the signal hits the item and returns to the transducer. The object’s distance is estimated rather than the signal’s loudness or sound quality. These transducers can be used to calculate a few other characteristics depending on where and how to use ultrasonic transducers, but they’re most commonly used to measure distance.
The sensitivity or resolution of the transducer is important to learn how to use ultrasonic transducer. Resolution refers to the transducer’s capacity to separate signals created by two close reflectors. Sensitivity refers to the transducer’s capacity to detect a flaw in the material. The reflected signal is reduced by using a very damped transducer, which allows the transducer to investigate faults that are closely spaced. To effectively know how to use ultrasonic transducer, the transducer must have greater high sensitivity with big polarised composite material and crystals.

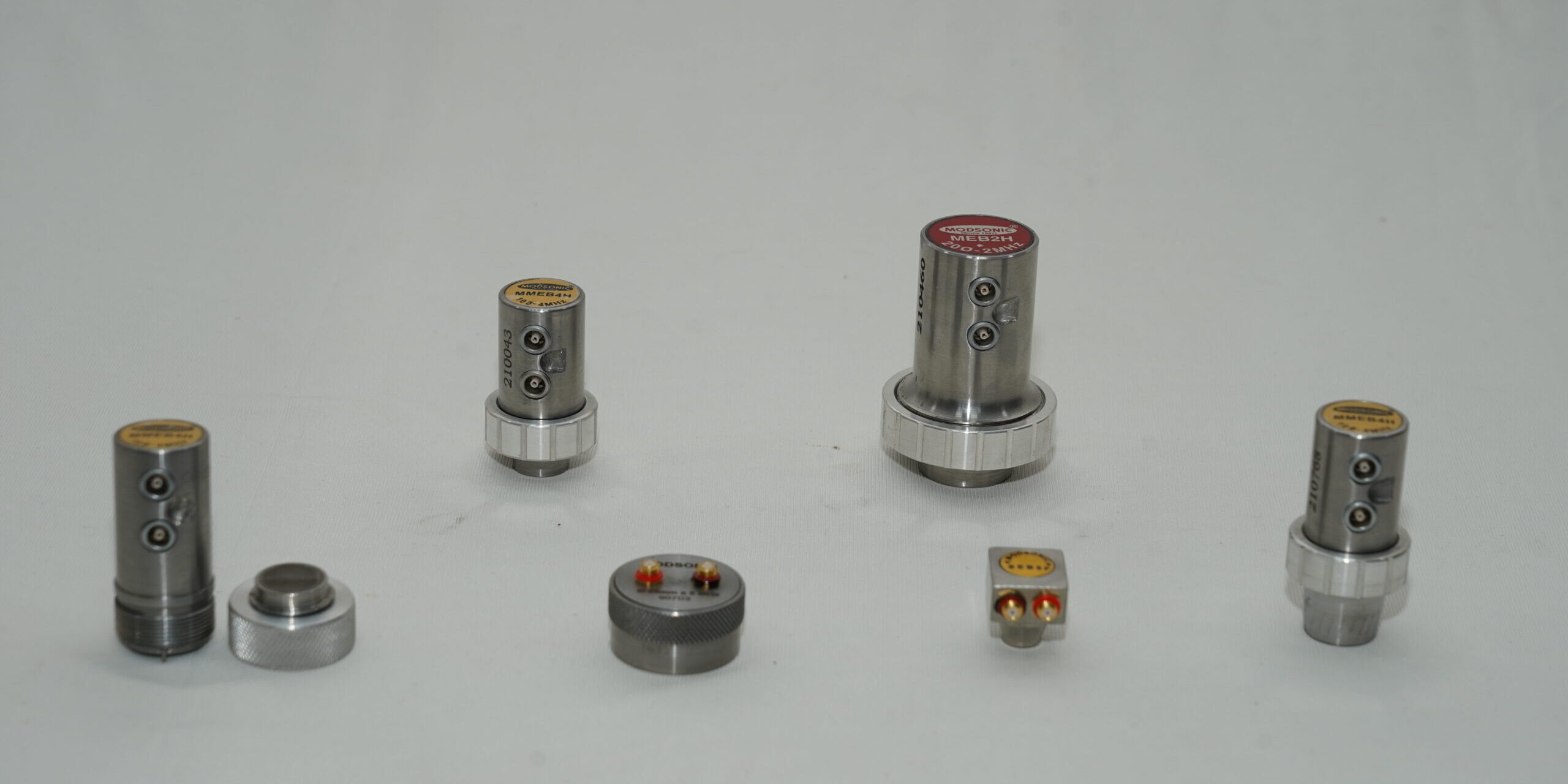

Active Components In An Ultrasonic Transducer
Important components that are essential for knowing how to use ultrasonic transducer, are the three parts: a wear plate, a backing, and an active component. A piezoelectric element, commonly known as a crystal, is an active component in a transducer that can transform or convert electric signals into ultrasonic energy, as well as recover and convert ultrasonic energy back into electrical energy. The electrical pulse is generated by a device known as a flaw detector.
Then the transducer converts the electrical energy pulse created by the test equipment into mechanical energy in the sound waves that travel within the test device during non-destructive testing (NDT). The sound waves can be relayed back from the test device to the transducer, which can then be converted into an electrical energy pulse that the test system can execute and display.
The transducers act as ultrasonic speakers and microphones to produce and recover sound waves in a higher frequency range and at a higher level than human hearing. A transmitter, receiver, control portion, and power supply are the components of a transducer. It has a transmitter and a ceramic vibrator with a diameter of around 15mm.
The transmitter’s function is to convert the ceramic vibrator’s electrical energy into ultrasonic energy, which it then emits into the air. An amplifier circuit and an amplifier are the major components in the receiver.
How To Determine The Efficiency Of An Ultrasonic Transducer?
To know how to use ultrasonic transducer, the efficiency of the transducer is determined first, by the wafer manufacturing method, which should have a high sensitivity and a high electromechanical coupling coefficient. The resonance frequency of the piezoelectric material used is the operating frequency of this transducer. The resonance frequency of the microchip with the maximum output energy and sensitivity is equal to the frequency of the applied AC voltage.
Because piezoelectric materials have a high Curie point, the transducer utilises minimal wattage and operates at a low temperature for diagnosis, allowing it to operate for extended periods of time without causing circuit damages.
Applications Of An Ultrasonic Transducer
Ultrasonic Transducers are used in a variety of ways.
- Used in a variety of fields, including industrial, medical, and others.
- The object is detected and the distance between the object and the target is measured using ultrasonic waves.
- One of the applications is how to use ultrasonic transducer to determine the object’s position and assess the quality of the target.
- These transducers are utilised in the industrial sector to estimate the distance of a specific target to avoid collisions, production management, fluid level monitoring and tracking, wire break recognition, vehicle and person detection for counting, and many other applications.
